What Is Polyethersulfone

What is Polyethersulfone?

Polyethersulfone(PES) is a kind of high-performance polymer, usually known as an amorphous material. Developed by ICI UK in 1972, PES resin is a thermoplastic high polymer with comprehensive properties, which is one of few special engineering mater plastic with a wide range of applications.

As a kind of thermoplastic polymers, PES resin has great heat resistant, physical, mechanical, and insulation performance. In particular, its outstanding advantages like stable property can still be retained even though it is continuously used at high temperature and under the circumstance of more rapid temperature change. That’s why PES resin is so widely used in various industries nowadays.
01
06

We Offer Professional Engineering Thermoplastic Solutions

Properties of Polyethersulfone(PES)


Heat Resistance

The heat deformation temperature of Polyethersulfone(PES) plastic material is 220℃ below 200℃; continuous use temperature is 200℃ below 180℃; UL temperature index is 180℃. Polyethersulfone(PES) can be used for up to 20 years at 180℃.

Hydrolysis Resistance

Polyethersulfone(PES) resin can resist the hot water or stream of 160℃ below 150℃. Even though under high temperature, it won’t erode by acid and base.

Dependence of Mold Temperature

The modulus of Polyethersulfone(PES) resin almost remain the same at 200℃ below -100℃. Polyethersulfone(PES) resin is better than any kinds of thermoplastic resin at the temperature over 100℃

Creep Resistance

Polyethersulfone(PES) resin has the best creep resistance among all thermoplastic resin at the temperature below 180℃. Particularly, glass fiber modified enhanced Polyethersulfone(PES) resin has better creep resistance than some thermosetting resin.

Dimensional Stability

Polyethersulfone(PES) resin is characterized by low coefficient of linear expansion and temperature reliability. Especially the 30% glass fiber enhanced Polyethersulfone(PES) resin only has a coefficient of linear expansion of 2.3×10-5 /℃, which can be retained a similar index of aluminum until 200℃.

Flame Retardant

Polyethersulfone(PES) resin can stand oil like gasoline, engine oil and lubricating oil and the detergent like Freon. It has the best resistance to solvent cracking among the amorphous resin but is not so good at standing the polar solvent like acetone and trichloromethane.

Non-toxicity

Polyethersulfone(PES) plastic material is approved by FDA, and also meets the requirements of No.434 and No.178 announcement of JMHW.

Flame Retardant

Polyethersulfone(PES) plastic material has great self-extinguishment even without adding any flame retardant, which can be up to UL94V-0 grade.

Impact Resistance

Polyethersulfone(PES) material has high strength and has the same impact resistance as polycarbonate. Non-reinforced Polyethersulfone(PES) resin is available in riveting but it is susceptible to the tapering cut.

Chemical Resistance

Polyethersulfone(PES) material has excellent resistance to the chemicals like acids, alcohols, alkalis, aromatic hydrocarbons, greases and oils, and halogens.

Good Electrical Property

Polyethersulfone(PES) material has outstanding insulating performance with the dielectric strength of 16 kV.mm-1, which makes it ideal for the industry of electronics and electrical devices.

Great Mechanical Property

Polyethersulfone(PES) material is made to be highly abrasion resistance, high hardness, impact and tensile strength, which makes it a practical plastic material for injection mold, car parts, aerospace, food-processing devices, etc.

Looking For High-performance Polymer For Your Applications?



Polyethersulfone(PES) Coating Manufacturer Since 1997


Polima has over 20 years of experience developing and manufacturing high-performance polyethersulfone(PES) coating. PES coating developed by Polima holds a unique national patent technique which utilises polyethersulfone as the binder.

With professional laboratories, skilled production crews, advanced manufacturing technology, and stable production lines, we can advise you on the proper coating solution for your applications.

All our polyethersulfone(PES) coatings meet international standards and have certificates like FDA, ROHS, LFGB, etc. We only provide the highest quality coating solutions for clients according to the industrial specification. In addition, we can offer custom coating according to your requirements and specifications.
PES-Resin-Granule
PES Resin Granule

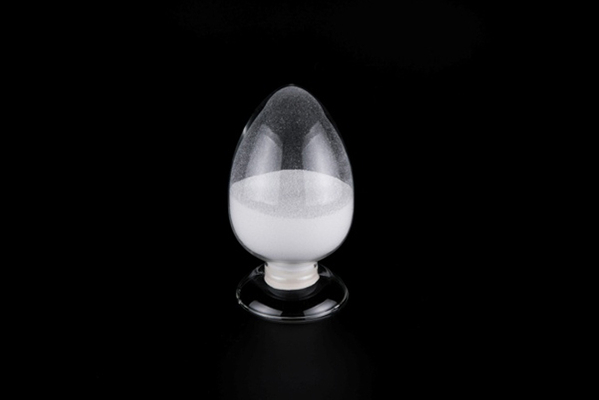

PES-Resin-Powder
PES Resin Powder
PES-Non-stick-Coating
PES Non-stick Coating
PES-Modified-Resin
PES Modified Resin

Polyethersulfone(PES) Used in Industries

shiwu

Food
3-1-tianmaojiadian

Appliance
dianzidianqi

Electronic&Electrical
jixie

Water Filtration
qiche

Machinery
yiliaofuwu

Automotive
yiliaofuwu

Medical
hangkonghangtian

Aerospace

 Applications of Polyethersulfone(PES)

  Polyethersulfone(PES) Resin:

Appliance & Food-processing Machine
pes resin for rice cooker
pes baby bottle
pes plastic material
Medical & Water Treatment
pes membrane
pes material product
pes filter membrane
Car & High-speed Rail & Aerospace
pes resin for car industry
pes material for vehicle
polyethersulfone resin for transportation
Electronics & Electrical Equipment
pes resin for electronic
pes polymer for electronics
pes material for electrical equipment
Machinery
pes resin for injection molding
pes material for machinery
Hot Water
polyethersulfone for hot water
polyethersulfone hot water pipe
pes powder for hot water
Other Fields - Fire Mask; Spectacle frame; E-cigarette; high-temperature resistance tube, etc.
pes resin for plastic processing
pes plastic frame
pes material for plastic

  Polyethersulfone(PES) Non-stick Coating:

non-stick coating for rice cooker
Household Appliance
non-stick coating for pans
Kitchenware
PES coating for metal
Light Industrial Hardware
PES coating for metal
Industrial Mold
PES surface coating for metal
Plastic Machinery

What Are Your Requirements On Engineering Plastic?

Why is Polyethersulfone(PES)  Better?


PES(Polyethersulfone), PPSU(Polyphenylenesulfone), PSU(Polysulfone) all belong to high-performance thermoplastic. In particular, PES material has its outstanding properties, which makes it widely used in many different industries.
PES Material
PES Material

Property

PSU/PSF

PPSU

PES

Heat Deflection Temperature (1.86MPa) (℃)

174

196

205

Glass Transition Temperature, DSC (10℃/min)

187

220

225

Relative Density (g/cm3)

1.23

1.29

1.37

Tensile Strength (MPa)

70

94

86

Elongation (%)

50-60

7-10

40-80

Compressive Strength (MPa)

280

150

130

Bending Strength (MPa)

107

127

136

Coefficient of Water Absorption for 24, take 3.2mm as sample (%)

0.22

0.37

0.43

Continuous Use Temperature (%)

140

180

180

Relative Permittivity

100Hz

3.1

3.8

3.9

1MHz

3.1

3.7

3.8

Corrosion-proof

Weak Acid

Not Working

Works

Works

Strong Acid

Not Working

Works

Works

Organic Solvent

Dissolve in halogenated hydrocarbon. Part of it dissolve in ester,ketone, and aromatic hydrocarbon.

Except for Acetone

and Trichloromethane

Except for

Acetone and

Trichloromethane

Why Choose Polima Polyethersulfone(PES) Non-stick Coating

We pioneered water-soluble PES non-stick coating patented technology, which overcame the reliance of traditional PAI not-stick coating and greatly improved the alkali resistance of water-soluble coating. Compared to PAI coating, our PES non-stick coating has greater hardness. What’s more, it has solved the problem that the non-stick coating with PAI binder cannot be sprayed on iron products. Due to such a excellent cost-effectiveness, Polima PES non-stick coating enjoys incomparable advantages to the same types of products in China.
PES Non-stick Coating
PES Non-stick Coating

PES vs PAI Non-stick Coating

PES Non-stick Coating

PAI Non-stick Coating

Non-stick Degree

5

4

Salt Tolerance

300 Hours

100 Hours

Hardness

≥2H

≥2H

Abrasive Resistance

13000

10000

Acid-base Resistance

100 Hours

30 Hours

Environment & Safety

FDA, ROHS, LFGB

FDA, ROHS, LFGB

Application

Aluminum, Iron, Stainless Steel

Aluminum, Stainless Steel

Cost

Cost-effective

Moderate

We Provide Best Non-stick Coating Solutions

Technical Support for Applying Polyethersulfone(PES) Non-stick Coating

We offer the most comprehensive technical support from coating, equipment, and technique.

01  The pre-treament process for aluminum products



The pre-treament process for aluminum products

02  Polyethersulfone(PES) Non-stick Coating Spraying Technique



PES Non-stick Coating Spraying Technique

03  Ceramic Coating Spraying Technique



Ceramic Coating Spraying Technique

04  Organosilicone Coating Spraying Technique



Organosilicone Coating Spraying Technique

We Can Offer Professional Spray Guideline
